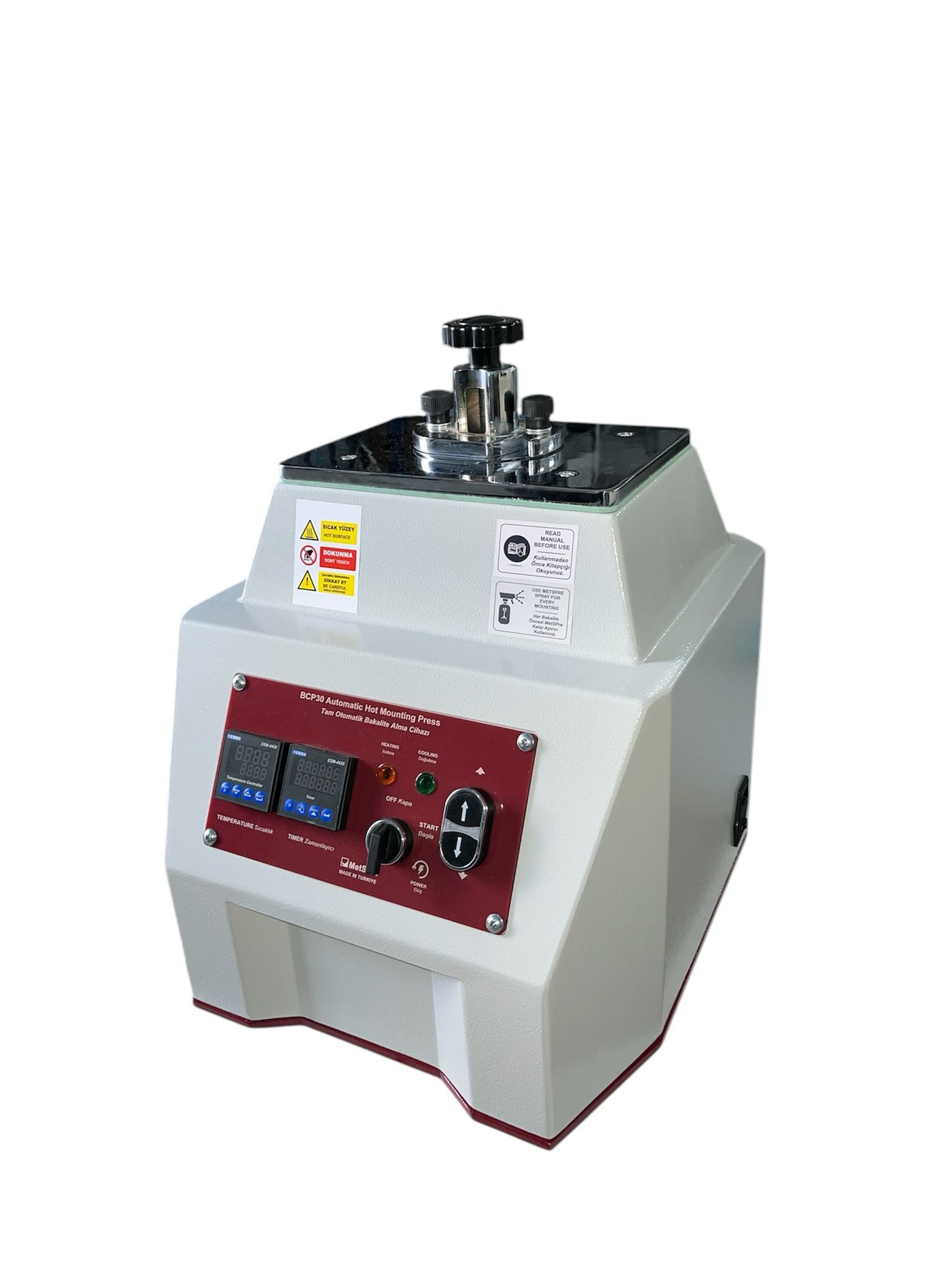

The BCP30/45 is a fully pneumatic, water cooled hot mounting press for mounting samples before polishing. The process sequence is executed automatically. Die BCP30/45 ist eine vollständig pneumatisch, wassergekühlte Heißeinbettpresse zum Einbetten von Proben vor dem Polieren. Der Prozessablauf wird automatisch ausgeführt. Automatic hot mounting press Automatische Warmeinbettpresse Fully pneumatic Vollständig pneumatisch, Water cooled Wassergekühlt



Standart Delivery;

Mounting Press

Brush

Funnel
Wooden Case



Features
Mold assembly	ø 30 and 45 mm
Thermostate range	0-200°C
Heating time	variable 0-30 min
Cooling time	5 min
Max. pressure in mold assembly depending on mold assembly's size	10 bar
Heating power	1.5 KW
W x H x D	400 x 400 x 500 mm
Weight	~ 35 kg



1.The temperature of surrounding medium can not be less than 10 °C and more than 40 °C；

2.The relative humidity of air should be no more than 85% (20 °C)；

3.There should be no obvious vibration source around；

4.There should be no current conducting dust, explosive and corrosive air.
